20ft can be connected prefabricated solar prefab house

  • 1 - 4 Units
    $3,300.00
  • 5 - 9 Units
    $2,500.00
  • >=10 Units
    $1,800.00
Material:
Container
Shipping:
Support Sea freight
Lead Time:
Quantity(Units) 1 - 3 >3
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China
Brand Name:
CDPH
Model Number:
container house2435
Use:
carport, HOTEL, HOUSE, Office, Sentry Box,Guard House, shop, Toilet, beach house,solar prefab house
Band:
CDPH
Name:
solar prefab house
ISO Quality Certificate:
ISO9001:2008
ISO Environment Certificate:
ISO14001:2004
Length:
6055mm
Width:
2435mm
Height:
2790mm
Color:
green and white
Package:
flat package
Port:
Tianjin
Supply Ability
Supply Ability:
2000000 Square Meter/Square Meters per Year 20ft can be connected prefabricated solar prefab house
Packaging & Delivery
Packaging Details
solar prefab house with flat pack
Port
Xingang(Tianjin)
Lead Time :
Quantity(Units) 1 - 3 >3
Est. Time(days) 15 To be negotiated
Product Description

20ft can be connected prefabricated solar prefab house

The detailed information as follows:

No
Sort
Name
Specification
1


Specification
length
6055mm ( inside size: 5850mm)
2
Width
2435mm( inside size: 2235mm)
3
Wall height
2790mm( inside size:2500mm)
4
weight
2000KGS
5





Standard accessory
Wall
Option 1: 75mm color steel sandwich panel, 0.4mm color steel sheet and 15kg/m3 EPS insulation;
Option 2: 75mm color steel sandwich panel, 0.4mm color steel sheet and 60kg/m3 glass wool insulation

6
Roof
Outside is 0.5mm color steel as the surface;Middle is 75mm glass wool insulation;Inside is 9mm melamine board;
Permitted live loading:1.5KN/m²

7
Base
Outside is 0.3mm galvanized steel sheet metal;
Middle insulation is 100mm glass wool;
Supporting material is 19mm cement board;
Inside decoration is 2mm rubber plastic flooring;
Girder 3.75mm, Permitted loading: 3.0KN/m2
8
Door
SIP door, single door with dimension of 800*200mm, furnished with lock.
9
Window
PVC sliding window, white color, with dimensions of 800*1100mm/800*500mm; Supplied with fly screen.
10
Post
Galvanized steel material: Q345-Q235, 3mm thickness. Connection part is M12 high strength bolt.
11

Option
Drainage system
Provided plan, design and construction
12
Electric system
Provided plan, design and construction
13

Technical parameter
Resistant temperature
-20℃to 50℃
14
Wind load
11 grade
15
The resistant earthquake grade
7fission activate

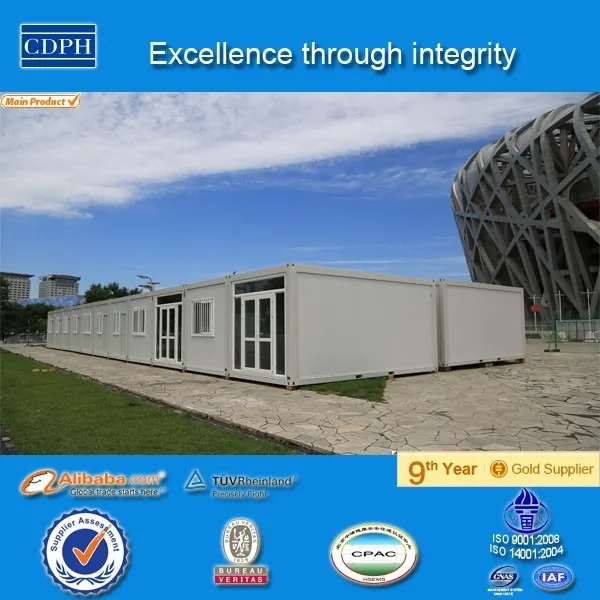

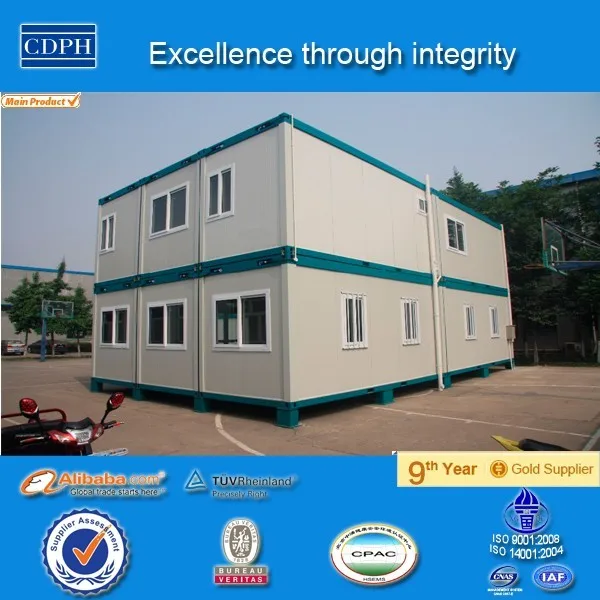

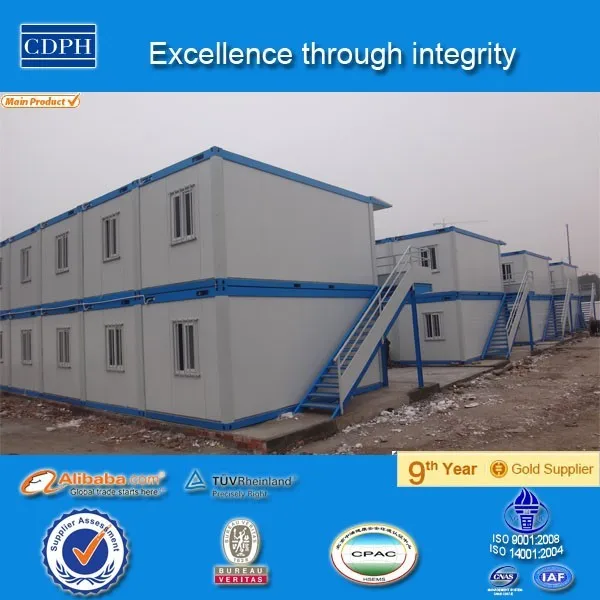

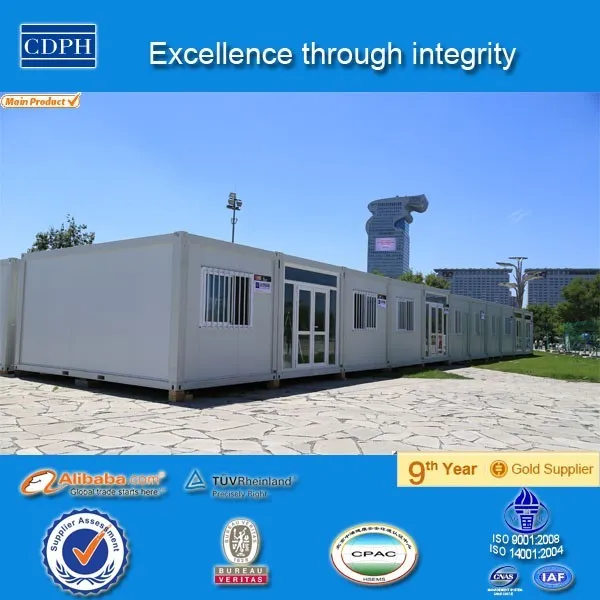

Detailed Images

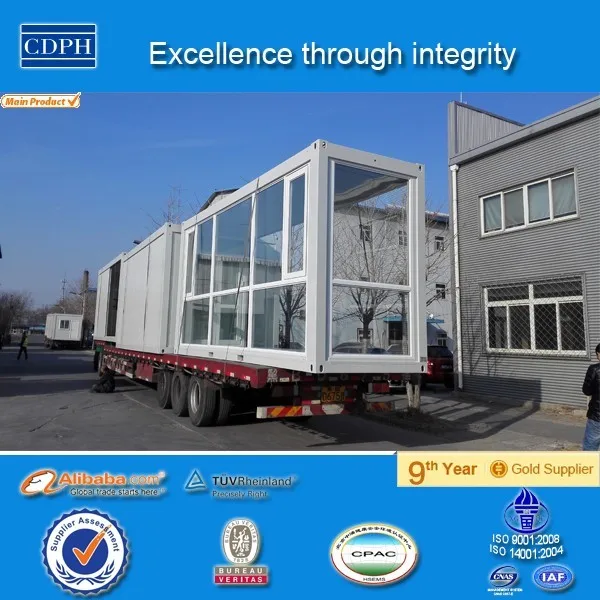

Packing & Delivery




Packaging Details :solar prefab house with flat pack

Delivery Time  :within 25 days





solar prefab house specifications
Good anti-rust ability and long endurable time.
Can be delivered directly as flat packs
Can be transported as a whole between sites
Easy installation, Save labor cost.



CDPH Beijing Chengdong International Modular Housing Corporation is aspecialized in Designing,Manufacturing, Marketing and Construction of prefabricated houses.Establish in 1998, Beijing Chengdong forges ahead, continues to make breakthroughs and has now successfully provided thousands of camp construction in more than 100countries,including camp planning,building design ,house industrial production,transportation,on-site installation,interior decoration,camp facilities,etc.
