Foldable house for camp site office

  • 1 - 99 Square Meters
    $70.00
  • 100 - 499 Square Meters
    $60.00
  • >=500 Square Meters
    $40.00
Material:
Sandwich Panel
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China
Brand Name:
CDPH
Model Number:
K 2015-r -s
Use:
Office
color:
red
Supply Ability
Supply Ability:
100000 Square Meter/Square Meters per Month Foldable house for camp site office
Packaging & Delivery
Packaging Details
bulk package
Port
XINGANG

Description



K Typesingle storey house is a cost-effective prefab house, mainly designed for construction site accommodation and office. Widely used in Asia countries, including China, India, Vietnam, and Thailand, Philippines, Indonesia and etc.

Features & Advantages:

1, Module: Width and length can be extended by times of 1820mm modular. Flexible design.

2, Fast Installation:Components are standard and fabricated in factory, less site works, quick and easy installation. Eight skilled workers can finish 100 m2 in 8 hours.

3, Reusable:Structures are connected by bolts & nuts, panels plug into channels, house can be knocked down for many times

4, Multi-storey: Can be one, two and three storeys.

5, Loading: One 40HQ container can load about 250m2without raised floor , or 200m2 with elevated floor.

6, Parameters:Wind load: 0.45KN/ m2, Anti-seismic: 7 , Service life: 5~10years.



Disassembly

All structures include raised steel flooring system are connected by bolts & nuts, panels flexible plug into channels, the house can be assemble and disassemble for 5-10 times.

When one project job is finished, house can be relocated to other site.



Specification

No.

Sort

Name

Specification

1

Specification

length

NM+160(N=4,5,6... M is modular, 1M=1820mm)

2

Width

NM+160(N=3,4,5... M is modular, 1M=1820mm)

3

Wall height

2-Storey    5720mm

3-Storey   8570mm

4

Clear height

Ground floor :2425mm First floor     :2685mm

Ground floor :2425mm First floor :   2425mm

Second floor: 2685mm

6

Standard accessory

Wall board

50mm EPS sandwich panel

7

Roof board

50mm EPS sandwich panel

8

Door

SIP with steel frame, single door with dimensions of 960*2028mm, furnished with a cylinder lock with 3keys. 50mm thick EPS insulation foam.

9

Window

PVC sliding window ,1735*932mm/1735*482mm two bay sliding, supplied with fly screen.

10

Base beam

C80 style steel. Painted

11

Column

Double C80 style steel, Painted

Double C80 style steel, ground floor reinforced. Painted

12

Floor beam

Parallel truss(C80 style steel). Painted

13

Floor purline

Gable truss(C80 style steel). Galvanized

14

Roof beam

Gable truss(C60 style steel). Painted

15

Roof purline

Gable truss(C60 style steel).Galvanized

16

Inclined brace

round steel, Galvanized

17

Stair

Steel stair, 1100mm wide.

18

Tread

Press steel board 2.5mm

19

Floor stab

15mm plywood

20

Option

False ceiling

Waterproof gypsum board or others

22

Decorative floor

PVC, laminated wood floor or ceramic tile

23

Drainage system

Provided plan, design and construction

24

Electric system

Provided plan, design and construction

25

Technical parameter

Roof Bearing load

50kg/m2



Floor Bearing load

200kg/m2

26

Wind resistance:

10 degree

27

Fire proof

B2 grade

28

Resistant temperature

-20°Cto 40°C

29

The resistant earthquake grade

7 degree seismic intensity

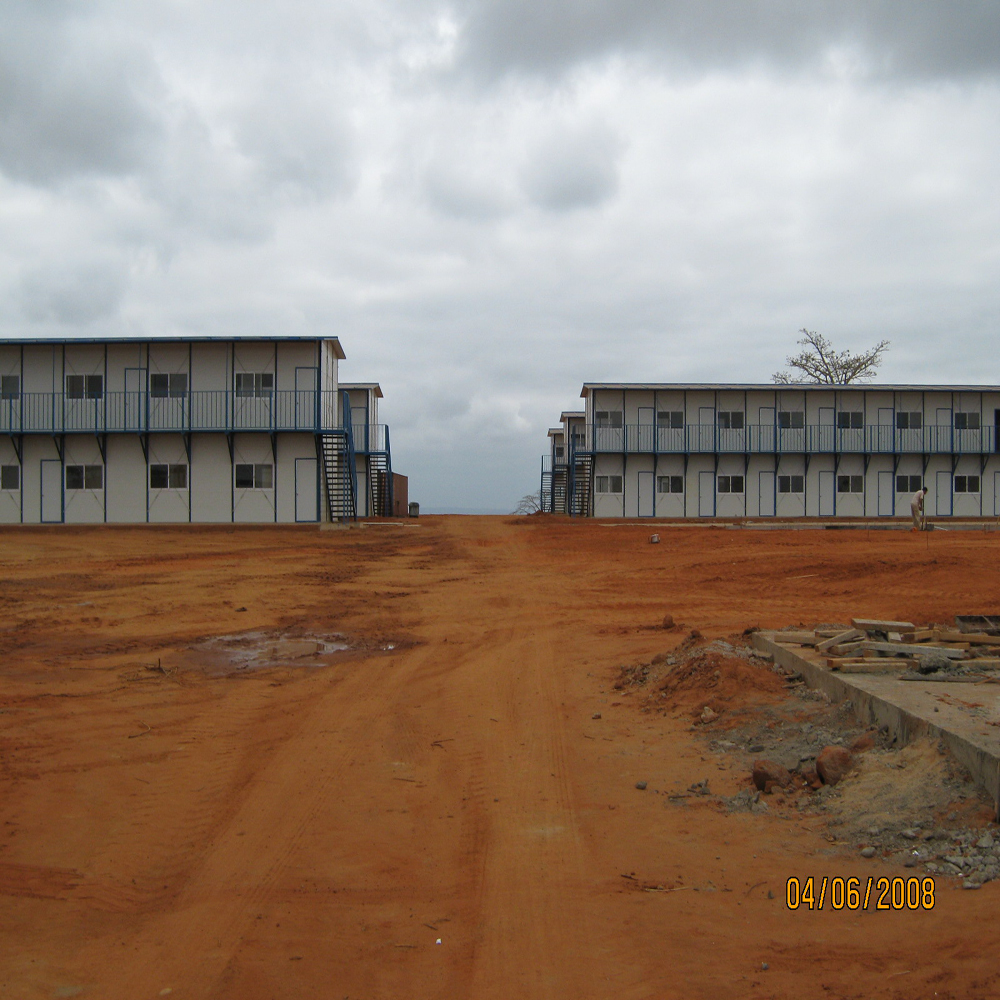

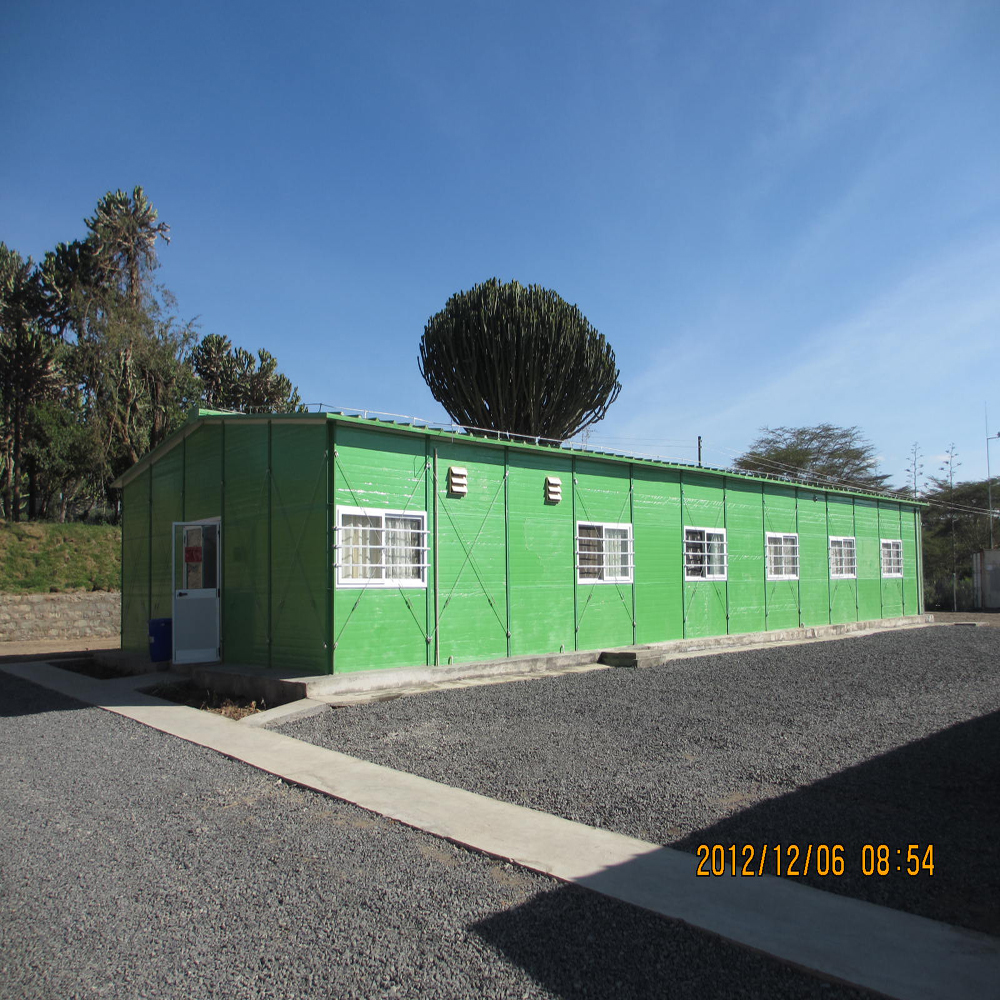

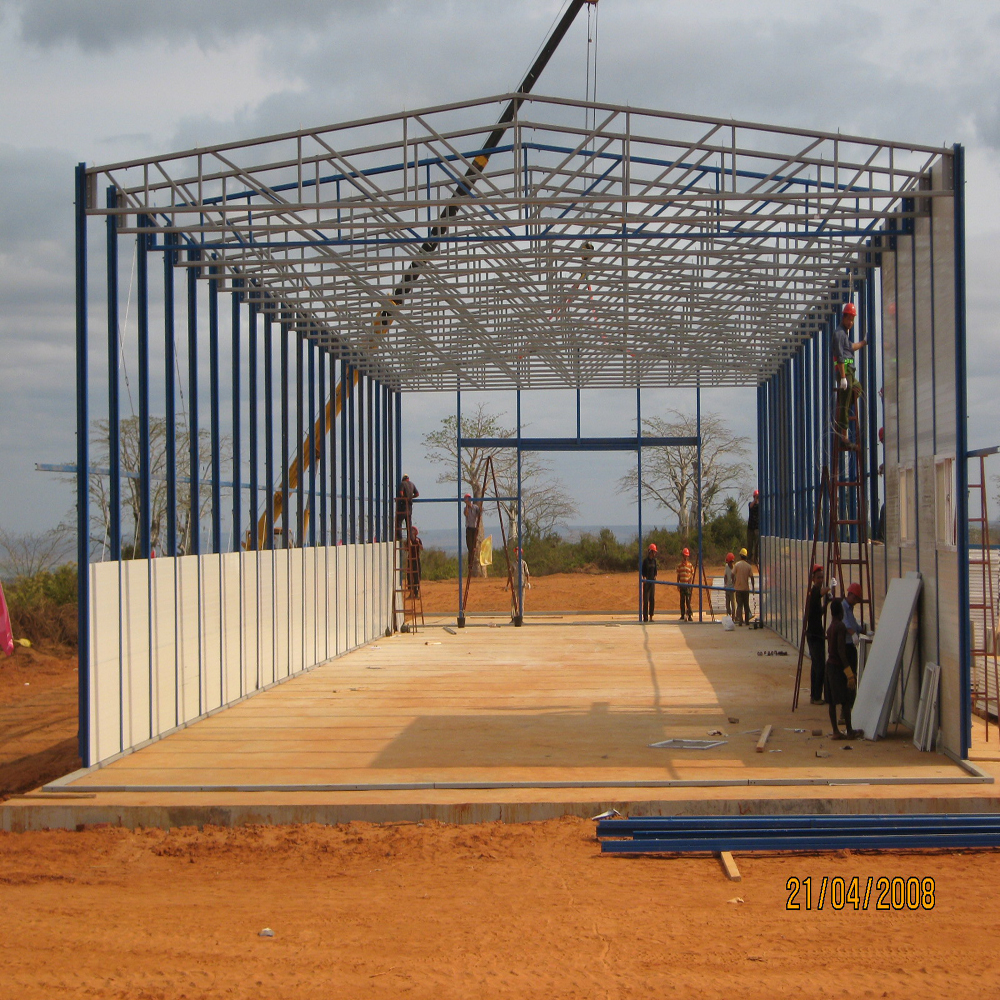

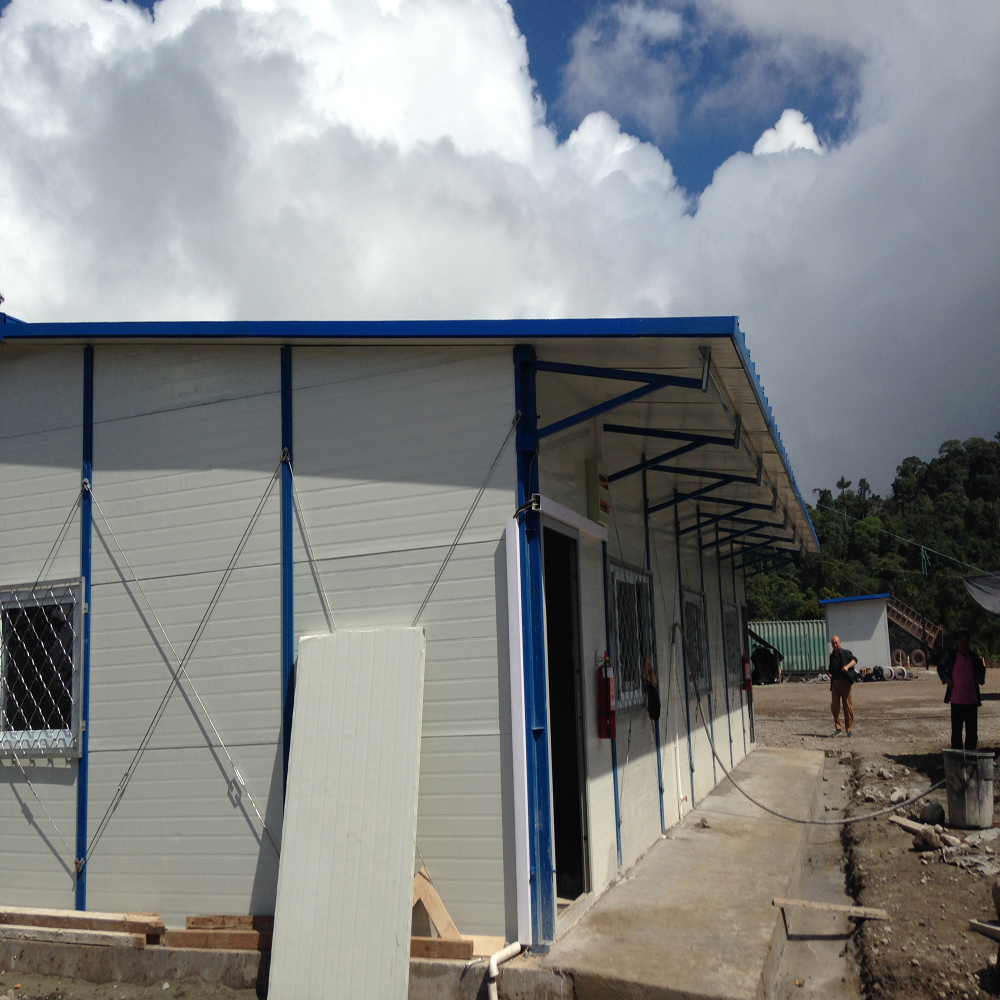

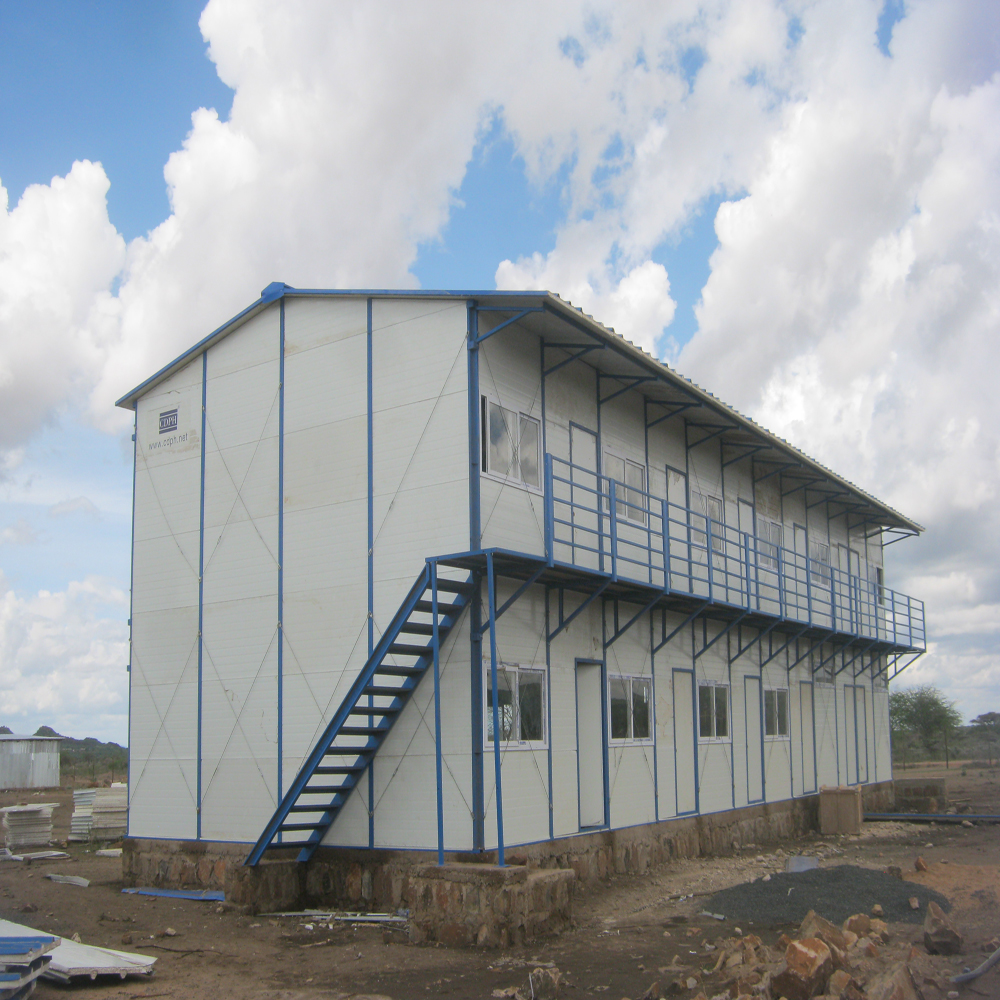

 IMG_0035 .jpg .JPGIMG_1958 .jpgIMG_0041 .jpgIMG_0111 .jpg
