China supplier modern living container house prefabricated low cost prefab luxury container house

FOB Reference Price:Get Latest Price
$2,400.00 - $2,800.00 / Set | 1 Set/Sets (Min. Order)
Material:
STEEL
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 3 >3
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
CDPH
Model Number:
XSF
Use:
carport, HOTEL, HOUSE, Kiosk,Booth, Office, Sentry Box,Guard House, shop, Toilet, Other
Structure:
Galvanized Steel Frame
Wall panel:
EPS Sadwich Panel or Glass wool sandwich panel
Standard size:
L6055mm*W2435mm*H2896mm
Door:
Steel Door
Floor:
Vinyl Sheet
Window:
Aluminum or Pvc Window
Size:
6055mmX2435mmX2790mm
Keyword:
low cost luxury container house
Type:
Light Steel Prefab Container House
brand:
CDPH
Supply Ability
Supply Ability:
400 Set/Sets per Month China supplier modern living container house prefabricated low c
Packaging & Delivery
Packaging Details
Flatpack
Port
Tianjin Port
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(days) 15 To be negotiated
Product Description

The detailed information as follows:


No.
Sort
Name
Specification
1


Specification
length
6055mm
2
Width
2435mm
3
Wall height
2896mm
4
weight
2000KGS
5

















Standard accessory
Wall
60mm,75mm or 100mm EPS sandwich panel( Glasswool panel ), 0.5mm color steel sheet and 15kg/m3 polystyrene foam density inside. Joining of panels with aluminum strip.
Permitted loading is 0.6KN/m2 and Coefficient of thermal conductivity is K=0.442W/m

6
Roof
Girder use 16a channel, outside is 0.5mm color steel as the surface and inside is 0.5mm color steel sheet as the ceiling. Between them is 100mm glass wool insulation.
Permitted loading:1.6KN/m² and Coefficient of thermal conductivity: K=0.55W/ m²K

7
Base
Girder use 14a channel and The purlines of the floor are welded by two sides. External wainscot is 0.4mm flat galvanized steel sheet metal, and insulation is 30mm EPS. The supporting material is 11mm plywood and the decoration is 8mm laminated flooring. openings for a fork-lift truck in the base framework, dim 88*250mm in a distance of 1200mm
Permitted loading: 3.5KN/m2 and Coefficient of thermal conductivity: K=1.1W/ m²K

8
Door
Steel door ,SIP door , single door with dimension of 800*2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam
9
Window
PVC, white color, with dimensions of 700*1000mm, glazed with glass in a thickness of 5mm, aluminium decorative part, casement, supplied with fly screen.
10
Post
Galvanized , material: Q235, 4mm thickness. PVC rainwater pipe in the framework fixed by 2pc reinforced corner fittings which plate thickness is 8mm.
11


Option
Decorative floor
Water -ProofRubber plastic floor or laminated flooring in living area and aluminium panel in bathroom and kitchen
12
Drainage system
Provided plan, design and construction
13
Electric system
Provided plan, design and construction
14


Technical parameter
Resistant temperature
-20°C to 50°C
15
Fire proof
B2 grade (Can Reach B1)
16
The resistant earthquake grade
7 fission activate.
Detailed Images

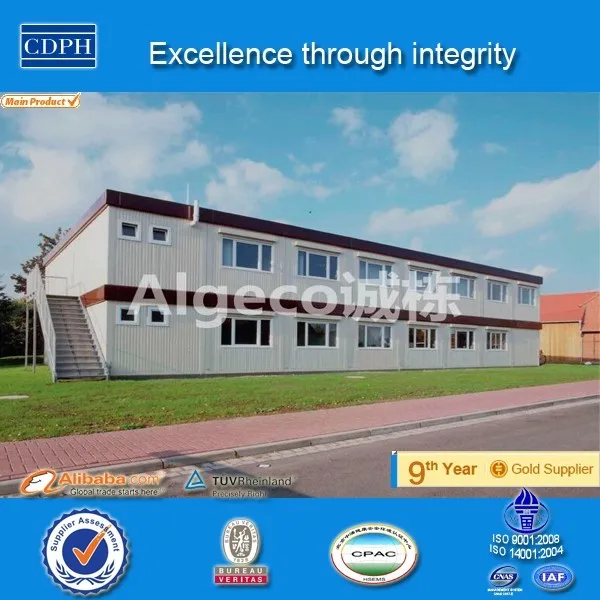

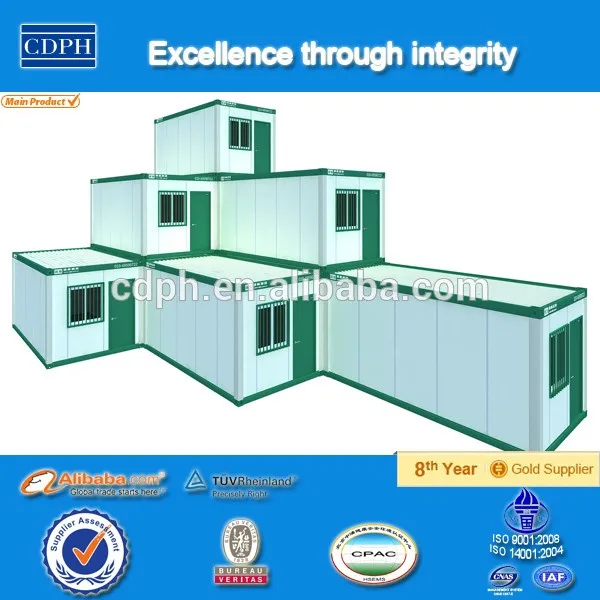

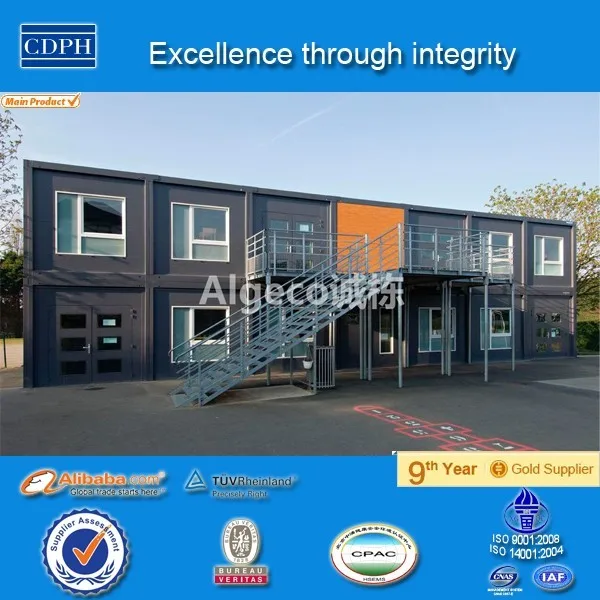

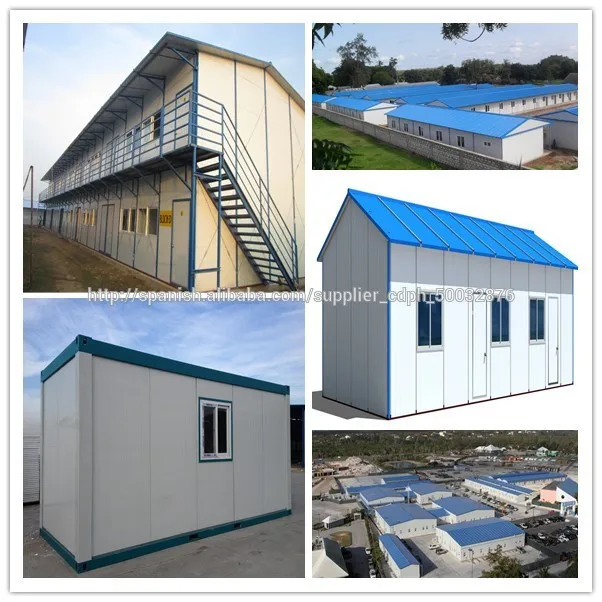

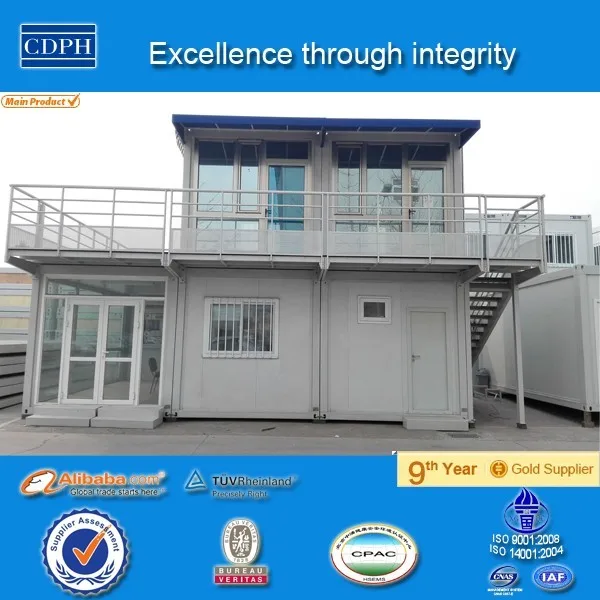

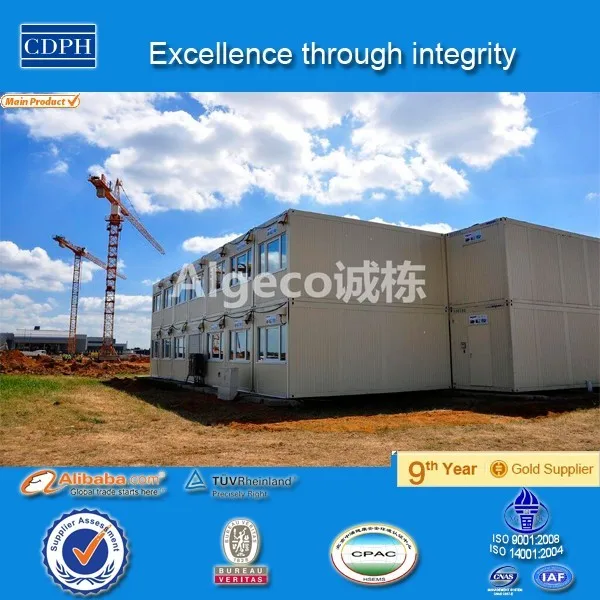

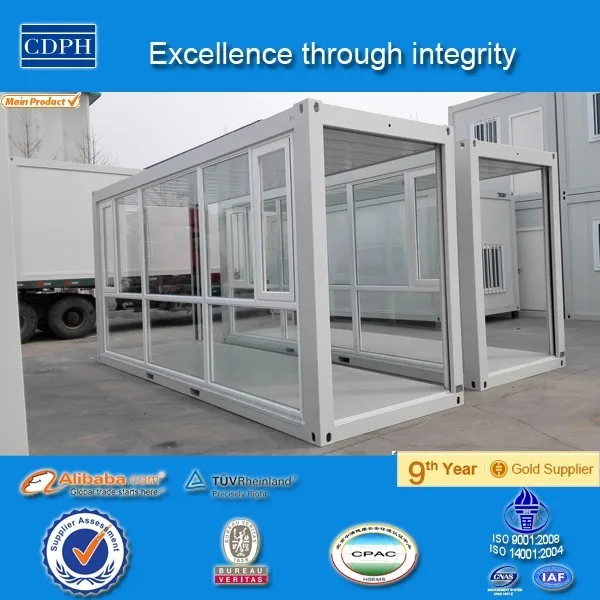

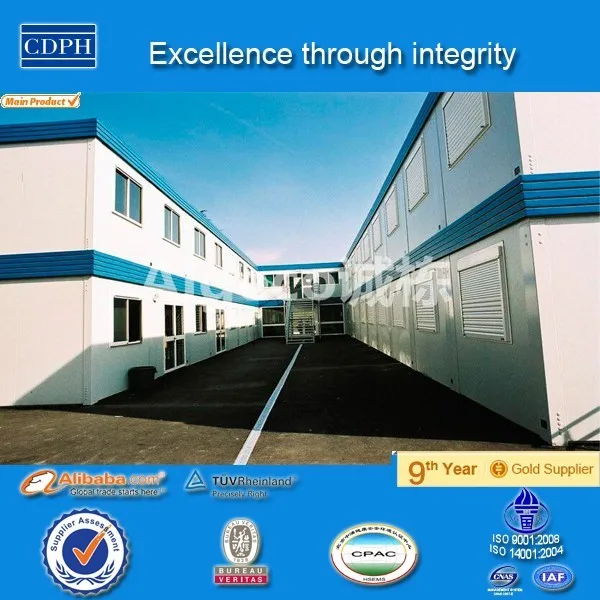

Modern container House is a ISO standard mobile house. Solid structure makes this house resist up to 120KM/H wind speed. Flat packing and loading into 40 foot containers when shipping makes goods safe and easy to transport and lay in at local site. With the character of free moving and fast installation, it is highly favorite by construction companies, mining companies, road & bridge companies all over the world.


Packing & Delivery

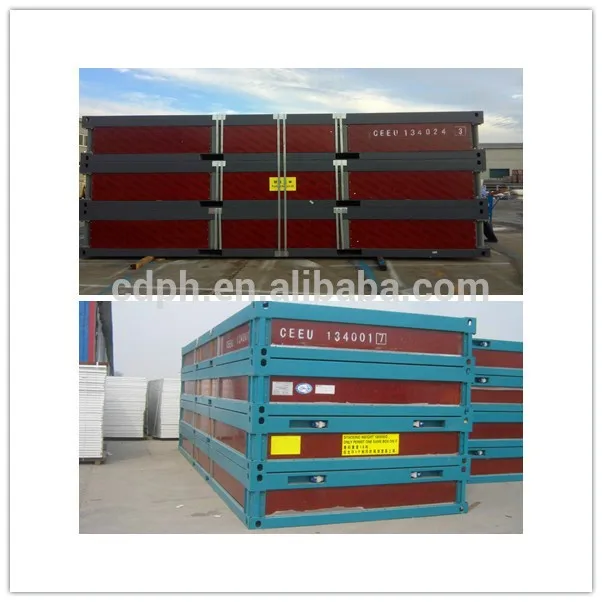

Packaging Details   :Flatpack

Delivery Time   :30 days after deposite

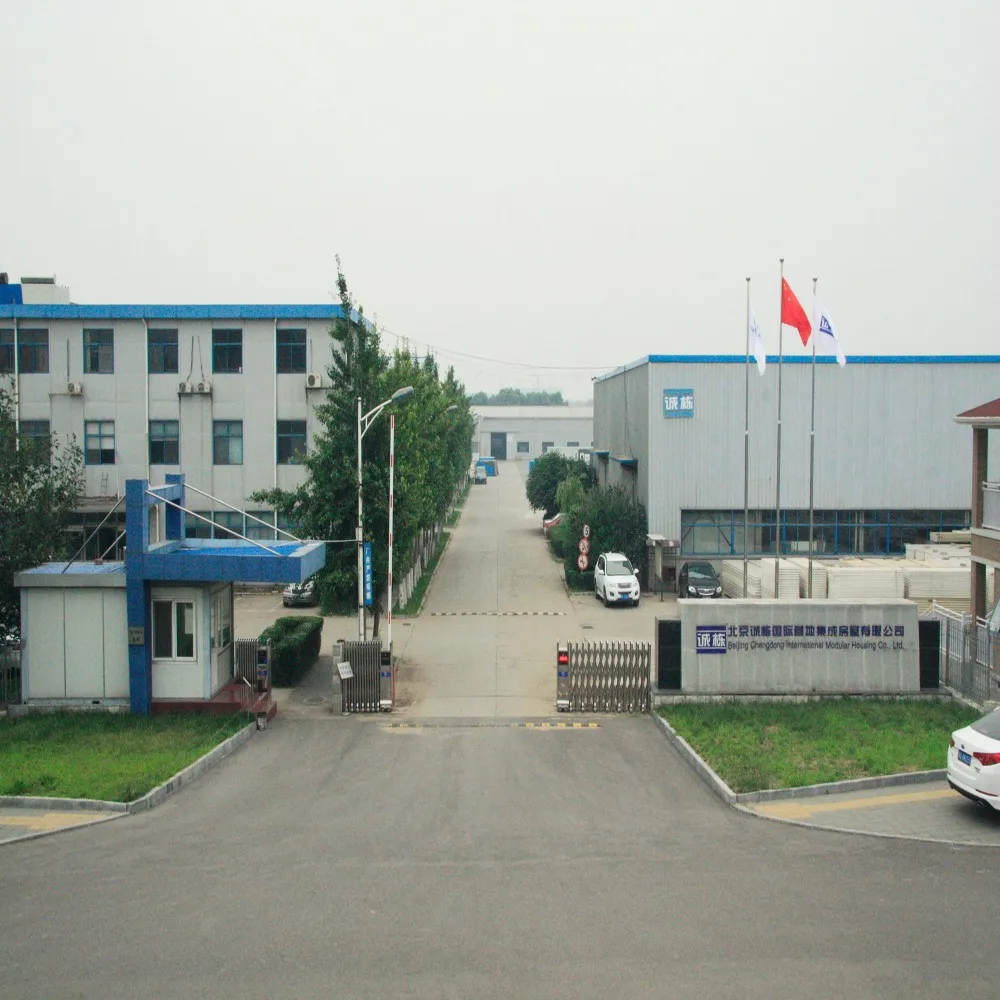

CDPH Beijing Chengdong International Modular Housing Corporation is aspecialized in Designing,Manufacturing, Marketing and Construction of prefabricated houses.Establish in 1998, Beijing Chengdong forges ahead, continues to make breakthroughs and has now successfully provided thousands of camp construction in more than 100countries,including camp planning,building design ,house industrial production,transportation,on-site installation,interior decoration,camp facilities,etc.
