China supplier economic prefabricated dome houses used as offices and accommodation

  • 1 - 99 Square Meters
    $70.00
  • 100 - 499 Square Meters
    $60.00
  • >=500 Square Meters
    $40.00
Material:
steel and sandwich panel prefab house kits
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China
Brand Name:
CDPH
Model Number:
A prefab house kits
Use:
House, Kiosk,Booth, Office, Shop, Toilet, Warehouse
name:
prefab house kits
ISO Quality Certification:
ISO9001:2008
ISO Environment Certificate:
ISO14001:2004
Roof board:
60mm EPS sandwich panel
Channel:
Z 50*60*30
Post:
H 56*40
Bearing load:
50kg/m2
Wind pressure:
0.5KN/M2
Fire proof:
B2 grade
The resistant earthquake grade:
7
Supply Ability
Supply Ability:
2000000 Square Meter/Square Meters per Year
Packaging & Delivery
Packaging Details
prefab house kits is packed by bulk package
Port
XINGANG(TIANJIN)
Product Description


China prefabricated homes as follows:
No.
Sort
Name
Specification
1


Specification
length
(n-2)*1224+2*1106mm (n: prefab unit, n=4,5,6)
2
Width
5060mm
3
Ridge height
3750mm
4
Inside height
2700mm
5







Standard accessory
Wall board
50mm EPS sandwich panel, 0.3mm color steel sheet and 12kg/m3 polystyrene foam density inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.663w/.k.
6
Roof board
60mm EPS sandwich panel, 0.3mm color steel sheet and 12kg/m3 polystyrene foam density inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.553w/•k.
7
Door(D-1)
SIP, single door with dimensions of 800*2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam.
8
Door(D-2)
SIP, single door with dimensions of 750*2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam.
9
Window(W-1)
Color steel sliding window with dimension of 1200mm*1000mm, red or blue, glazed with glass in a thickness of 5mm, two bay sliding, supplied with fly screen.
10
Window(W-2)
Color steel sliding window with dimension of 1200mm*500mm, red or blue, glazed with glass in a thickness of 5mm, two bay sliding, supplied with fly screen.
11
Channel
Z 50*60*30, material:Q235. Painted
12
Post
H 56*40, material:Q235, modular pace: 1224mm. Galvanized
13
Roof beam
The trusses are composed of 353 steel and 20*20 steel, the material of the tie rod in the bottom is Q235. Galvanized
14
Compressed tank
C 40, material:Q235. Galvanized
15



Option
Elevated ceiling
Ceiling of mineral wool acoustic panel, or
Ceiling of aluminium panel

16
Elevated floor
Steel structure with 14mm plywood
17
Decorative floor
PVC, laminated or ceramic tile
18
Drainage system
Provided plan, design and construction
19
Electric system
Provided plan, design and construction
20



Technical parameter
Bearing load
50kg/m2
21
Wind pressure:
0.5KN/M2
22
Fire proof
B2 grade
23
Resistant temperature
-15°C~50°C
24
The resistant earthquake grade
7fission activate.
Detailed Images

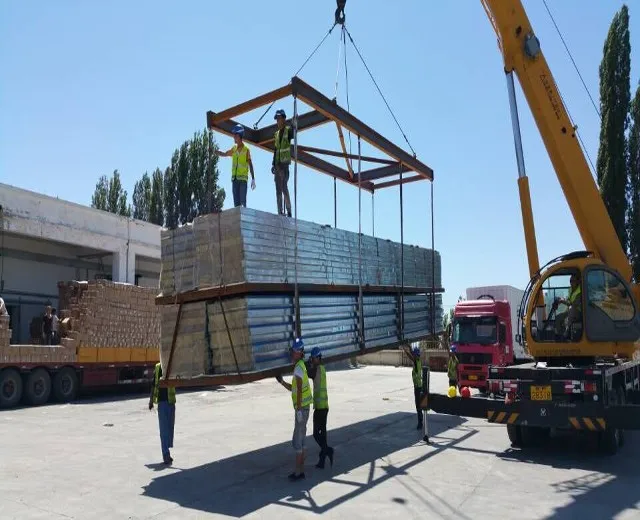

Packing & Delivery



Packaging Details   :   prefab house kits is packed by bulk package

Delivery Time   :   within 15 days after receiving advance payment and LC at sight






                                        package


Our Company


CDPH Beijing Chengdong International Modular Housing Corporation is aspecialized in Designing,Manufacturing, Marketing and Construction of prefabricated houses.Establish in 1998, Beijing Chengdong forges ahead, continues to make breakthroughs and has now successfully provided thousands of camp construction in more than 100countries,including camp planning,building design ,house industrial production,transportation,on-site installation,interior decoration,camp facilities,etc.

Products


Prefab house Kits (A type) is a standard modular house. The width is 5.060m as fixed size but the inside layout can be designed as per customers’ requirements. When delivery, it is knock-down to save space. Based on bolts connection without welding work, it could be assembled and disassembled easily and four workers can finish 120m2 in 8 hours according to instruction and CD.
